Bomb Despawning Enemies

Specifications

  • Versions: 1.00 - 1.01 - 1.02 - 1.02a - 1.02b - 1.02c - 1.02d - 1.02e - 1.02f - 1.02h
  • Difficulty: Easy - Normal - Hard - Lunatic - Extra
  • Mode: Main game - Practice mode
  • Shottype: ReimuA - ReimuB - MarisaA - MarisaB

What happens

Using a bomb sometimes causes enemies to despawn. This only applies to enemies coming from the right side of the screen.

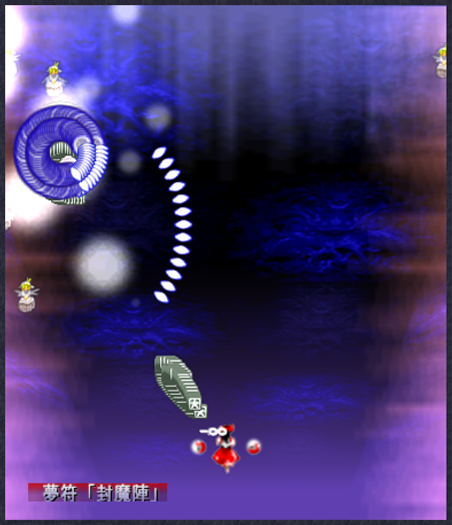

A screenshot of the end section of Stage 6 of EoSD
Figure 1: Enemies from only the left side show up, but some of the enemies from the right side fail to show up.

How it happens

Use a bomb right as an enemy is about to appear from off-screen. This more notably happens when the screen-shaking effect is extremely violent, which is with the shottypes ReimuB and MarisaB.

Why it happens

To know why this happens, we must first understand what makes an enemy despawn, and what bombing does to the screen.

Despawning conditions

For an enemy to despawn by leaving the screen, exactly two conditions must be fulfilled:

  1. The enemy must have been in bounds before at least once: has_been_inbounds must be true,
  2. The enemy must currently be out of bounds.

(The purpose of the first point is to prevent the enemy from immediately despawning if the enemy spawns from off-screen)

To check whether the enemy has been in bounds or not, the game checks if any part of the enemy's sprite is within bounds. In pseudo code, it is written as follows::

boolean is_in_bounds(x, y, enemy_width, enemy_height):
    if (x + enemy_width / 2) < 0:
        return false
    if (x - enemy_width / 2) > screen_width:
        return false
    if (y + enemy_height / 2) < 0:
        return false
    if (y - enemy_height / 2) > screen_height:
        return false
    return true

The origin (0, 0) is in the top left of the screen. To give more information to the previous function, an image below is given showing the coordinate system in this game:

A screenshot showing the coordinates of the game
Figure 2: Screenshot showing the x- and y-coordinates of the game

Below is an example on how the enemy despawning process works:

Three screenshots of an enemy spawning, being on-screen and despawning
Figure 3: Three panels. First panel shows the enemy spawning from off-screen (has_been_inbounds = false, is_in_bounds = false). The second panel shows that the enemy has entered the screen (has_been_inbounds = true, is_in_bounds = true). The third panel shows the enemy exiting the screen and thus despawning (has_been_inbounds = true, is_in_bounds = false)

Screenshaking effect

The screenshake effect is an effect that modifies the position of the screen as well as the size of the screen. The logic for screenshaking goes as follows:

  • Pick a random number between 0 and 2.
  • Depending on the random number:
    • The screen's position moves slightly
    • The screen's dimensions decrease slightly
  • This logic is applied independently to both the X and Y axes.

The second point "The screen's dimensions decrease slightly" is the only part of interest. Below is shown pseudocode of the relevant part of the screenshake effect.

if (random_integer(0, 2) == 0) {
    screen_width = 384.0
} else {
    screen_width = 384.0 - screen_offset
}

if (random_integer(0, 2) == 0) {
    screen_height = 448.0
} else {
    screen_height = 448.0 - screen_offset
}

screen_offset is calculated as follows:

screen_offset(timer) = ((end_offset - start_offset) / effect_length) * timer + start_offset

This follows the linear equation y = mx + b with parameters:

  • y being the output (screen_offset)
  • m being the slope: (end_offset - start_offset) / effect_length
  • x being the independent variable (timer) starting from 0
  • b being the y-intercept: start_offset

The values of effect_length, start_offset, and end_offset are hardcoded values that are specific to each character. Below is a table summarising the values for every case.

Shottype Bomb Trigger condition effect_length start_offset end_offset
ReimuA On orb explosion 16 8 0
ReimuB First 60 frames 60 2 6
After first 60 frames 80 20 0
MarisaA First 120 frames 120 4 1
MarisaB Frames 60-120 60 1 7
After 120 frames 200 24 0

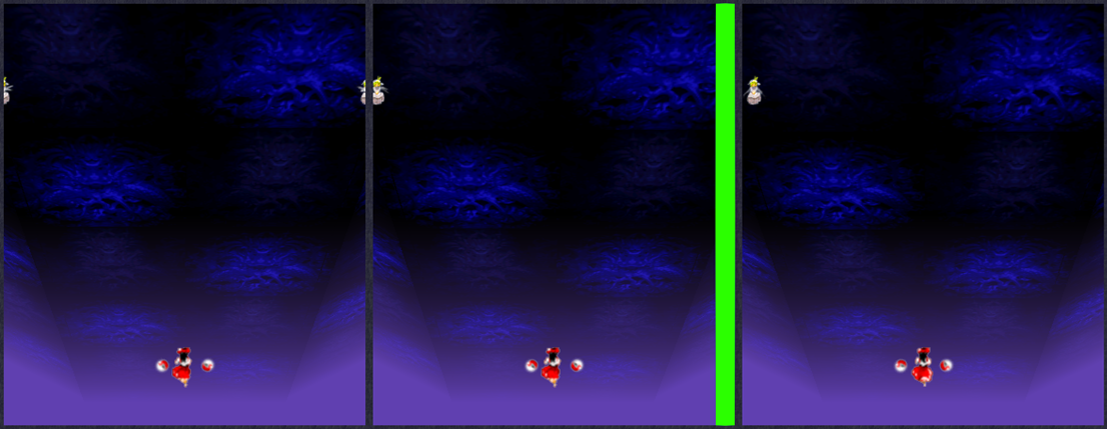

The following image demonstrates the despawning process of a fairy. This has been done with ReimuB on Stage 6, with screen_offset being 20 on the x-axis.

Three screenshots of an enemy being on-screen, going off-screen and therefore despawning prematurely
Figure 4: Three panels. The first panel shows the enemy entering the screen (has_been_inbounds = true, is_in_bounds = true). The second panel shows the screen shake effect with screen_offset = 20. The area in green is the area the field has been shrunk by (has_been_inbounds = true, is_in_bounds = false). The third panel shows that the enemy on the right has despawned.

Pausing & desyncs

If you pause the game while the screen is shaking, the screen_width and screen_height reset to 384.0 and 448.0 respectively. This means that by repeatedly pause-buffering during periods where screen_offset is non-zero, you can manipulate the stage to retain a constant screen_width and screen_height of 384.0 and 448.0 respectively. However, performing this action will likely desync your replay. When watching back the replay, the screen_width and screen_height will not retain their initial values but will instead fluctuate based on screen_offset, which will despawn any entities that otherwise would have been there. Likewise, pause-buffering during a bomb will have the same effect where the replay may desync.

Replays

  • Replay reimuA by "kana0603". Lunatic, ReimuA, 1.02h. 「June 1, 2025」. Download link (Note: Despawned Stage 6 ring fairies with a bomb)
  • Replay reimuB by "kana0603". Lunatic, ReimuB, 1.02h. 「June 1, 2025」. Download link (Note: Despawned Stage 6 ring fairies with a bomb)
  • Replay marisaA by "kana0603". Lunatic, MarisaA, 1.02h. 「June 1, 2025」. Download link (Note: Despawned Stage 6 ring fairies with a bomb)
  • Replay marisaB by "kana0603". Lunatic, MarisaB, 1.02h. 「November 8, 2025」. Download link (Note: Despawned Stage 6 ring fairies with a bomb)

Videos

This section has no content yet. Would you like to add to this section? Contact me if you are interested!
